Hydraulic Tunnelling Drilling Rig
KM211 mining hydraulic
anchor drilling truck
Dimensions (L * W * H mm)
11160x2000x1465/1985
Weight （kg）
11000
Φ Aperture (mm)
32-76/42-89
Power（Kw）
13/20/18
Gas production（m3/min）
0.7
Drill depth（m）
/
Gradeability（°）
14
sales hotline
Get a quote
product details
Technical Parameters
KM211 mining hydraulic
anchor drilling truck

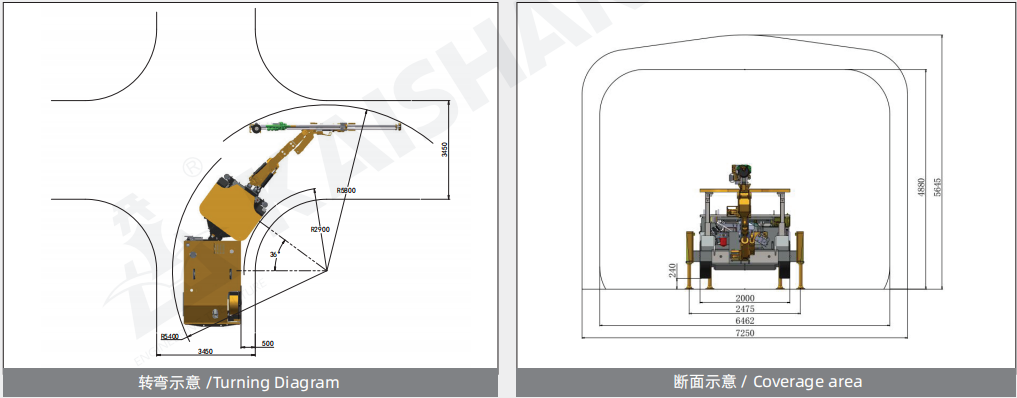

Drill vertical, inclined and horizontal blast holes in low tunnels; Suitable for any tunnels whose section falls in the range of 3.5m*1.8m-5m*4.8m.

  • The firm flexible boom is capable of optical coverage of the section;
  • 360º rotation and self-leveling beam make drill positioning easy;
  • The boom can also be used for the drilling of lateral cross-cut and rock bolting;
  • The drill rig provides a good view for the operator;
  • Balanced layout and the articulated chassis of four-wheel drive ensure the flexible,fastand safe driving in the narrow tunnel;
  • the stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition;
  • Considerable space and automatic functions enable the driver to concentrate on drilling in a safe,fast and accurate manner;
  • All the relevant parts are kept in good protection,meanwhile easy to maintain.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
